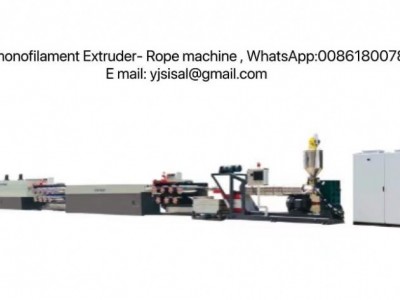

PP Monofilament Extruder
| Brand: | YIJUN |
|---|---|
| : | |
| : | |
| : | |
| Quantity: | 1 piece |
| Area: | 广西 南宁市 |
| Expiry: |
Long-term
|
|---|
Contact Supplier
Basic Info.
Product Description
PP Monofilament Extruder
PP Monofilament Extruder
Technical data
Item | HDYSJ-70*33 | HDYSJ-80*33 | HDYSJ-90*33 |
Screw Diameter | 70mm | 80mm | 90mm |
Fiber Diameter | 0.13-0.35mm | 0.13-0.35mm | 0.13-0.35mm |
Fiber Type | PP/PE/HDPE Monofilament Yarn For Making Rope or Net | ||
Ratio of L/D | 33 | 33 | 33 |
Rotation Speed of Screw | 20-90r/min | 20-90r/min | 20-90r/min |
Drawing Ratio | 4-10 | 4-10 | 4-10 |
Cooling Mode | Water Cooling | Water Cooling | Water Cooling |
Power Consumption | 100KW/65KW | 130KW/80KW | 150KW/100KW |
Max Output capacity | 1200KG/24H | 2000KG/24H | 3000KG/24H |
Machine Weight | 13 Tons | 15 Tons | 18 Tons |
Machine Dimension(L*W*H) | 20*3*2.5M | 23*3*2.5M | 27*3*2.5M |
Performance & Advantages:
· Screw and barrel are made of nitride steel 38CrMoAl with special hardening, has good corrosion resistance and wear resistance, longer life.
· AC Inverter & Motor can synchronize the entire extruder.
· Latest technology used for force the melt into the die very effectively.
· Take up small area.
· Easy operation.
· High output capacity.
Company Profile
| Business Type: | sisal ropes, rope machines | |
| Main Products: | sisal ropes, all kind of rope machine | |
| Registered Capital: | 3000 ten thousand 人民币 | |
| Mode: | 制造商 | |
| Area: | 广西/南宁市 | |
| Size: | 50-99人 |
| Year of registration: |
1997
|
