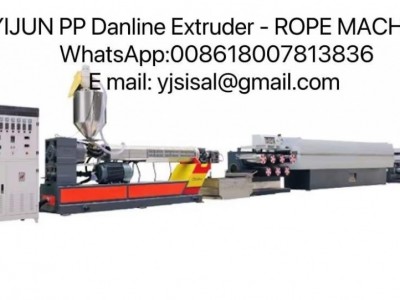

PP Danline Extruder
| Brand: | YIJUN |
|---|---|
| : | |
| : | |
| : | |
| Quantity: | 1 piece |
| Area: | 广西 南宁市 |
| Expiry: |
Long-term
|
|---|
Contact Supplier
Basic Info.
Product Description
PP Danline Extruder rope machine
PP Danline Extruder
Technical data
Item | HDYSD-70*33 | HDYSD-80*33 | HDYSD-90*33 |
Screw Diameter | 70mm | 80mm | 90mm |
Fiber Diameter | 1000D-3500D | 1000D-3500D | 1000D-3500D |
Fiber Type | PP danline Yarn For Making Rope or Net | ||
Spinning holes | 72 | 96 | 108 |
Ratio of L/D | 33 | 33 | 33 |
Rotation Speed of Screw | 20-90r/min | 20-90r/min | 20-90r/min |
Drawing Ratio | 4-10 | 4-10 | 4-10 |
Cooling Mode | Water Cooling | Water Cooling | Water Cooling |
Stretching Hot oven | 6000*600*1000mm | 6000*600*1000mm | 6000*600*1000mm |
Power Consumption | 110KW/80KW | 120KW/90KW | 120KW/90KW |
Max Output capacity | 1200KG/24H | 2000KG/24H | 3000KG/24H |
Machine Weight | 11 Tons | 12 Tons | 12 Tons |
Machine Dimension(L*W*H) | 25*2.3*1.85M | 27*2.3*1.85M | 27*2.3*1.85M |
PP Danline Extruder
PP danline extruder machine
This machine can produce different size of pp danline yarn for marine and fishery usage.
The yarn is for making plastic rope, fishing rope, mooring rope, etc.
Performance & Advantages:
· Screw and barrel are made of nitriding steel 38CrMoAl with special hardening, has good corrosion resistance and wear resistance, longer life.
· AC Inverter & Motor can synchronize the entire extruder.
· Latest technology used for force the melt into the die very effectively.
· Easy control and adjust system, make production more easy and fast.
· Strong material and fine processing of machine, good quality electric parts for long time high efficient working.
· Responsible after sale service, help client install the machine, train using the machine step by step.
