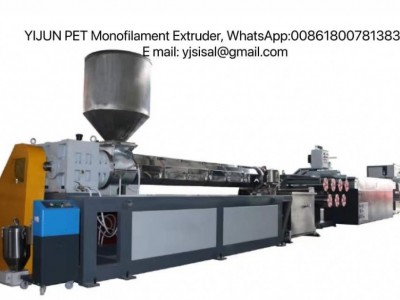

PET Monofilament Extruder
| Brand: | YIJUN |
|---|---|
| : | |
| : | |
| : | |
| Quantity: | 1 piece |
| Area: | 广西 南宁市 |
| Expiry: |
Long-term
|
|---|
Contact Supplier
Basic Info.
Product Description
PET Monofilament Extruder
PET Monofilament Extruder
Technical data
Item | PET 70*33 | PET-80*33 | PET-90*33 |
Screw Diameter | 70mm | 80mm | 90mm |
Fiber Diameter | 0.13-0.5mm | 0.13-0.5mm | 0.13-0.5mm |
Fiber Type | PP/PE/HDPE Monofilament Yarn For Making Rope or Net | ||
Ratio of L/D | 30 | 30 | 30 |
Rotation Speed of Screw | 0-120r/min | 0-120r/min | 0-120r/min |
Drawing Ratio | 4-10 | 4-10 | 4-10 |
Cooling Mode | Water Cooling | Water Cooling | Water Cooling |
Power Consumption | 100KW/65KW | 130KW/80KW | 150KW/100KW |
Max Output capacity | 800-1600KG/24H | 2000KG/24H | 3000KG/24H |
Machine Weight | 10 Tons | 12 Tons | 15 Tons |
Machine Dimension(L*W*H) | 20*3*2.5M | 23*3*2.5M | 27*3*2.5M |
Performance & Advantages:
· Screw and barrel are made of nitride steel 38CrMoAl with special hardening, has good corrosion resistance and wear resistance, longer life
· AC Inverter & Motor can synchronize the entire extruder
· Latest technology used for force the melt into the die very effectively
· Take up small area
· Easy operation
· High output capacity
