purpose

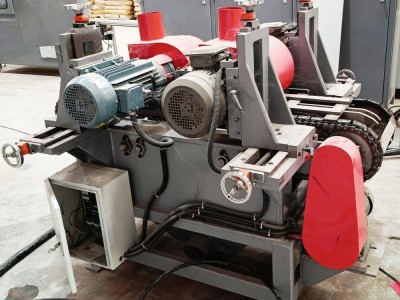

The equipment is applied to the processing technology of slotting and chamfering of automobile brake pads, which can meet the processing requirements of straight groove and chamfering, with good processing consistency. The workpiece is positioned at one time and the chamfering and slotting are completed by running water. It has the characteristics of continuous up and down film, adjustable speed, convenient operation and good efficiency. The slotting and chamfering combined machine includes frame, guide rail, splint, transmission unit, slotting unit and chamfering unit, dust suction unit, etc. each unit of slotting unit and chamfering unit includes motor base, including support base, z-axis base and y-axis base sliding table. The z-axis base can be installed on the support base up and down through z-axis lifting mechanism, The y-axis middle seat can be translationally installed on the z-axis base along the y-axis through the y-axis translation mechanism.
