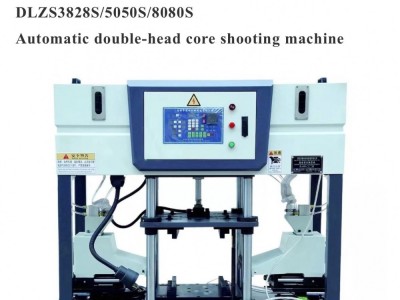

Casting machinery: automatic double head core shooting machine

1

砂芯最大质量Max.weight for core box

3.2kg*2

5kg*2

15kg*2

2

最大芯盒尺寸Max.size of core box (L*W*H)

380*280*200mm

500*500*250mm

800*800*500mm

4

射头左右行程Ejector stroke from left to right

≤125mm

≤175mm

≤250mm

5

垂直含模最大行程Max.Stroke of vertical mold clamping

≤300mm

≤450mm

≤700mm

6

加热功率 Heating power

8kw

15kw

37kw

7

机器净重 Net weight

513kg

860kg

3000kg

8

外形尺寸 Boundary Dimensions (L*W*H)

1420*680*1700mm

1850*800*2235mm

2485*1285*3100mm

9

备注：根据客户需求可加装前后抽芯
Remark: front or back core-pulling could be installed according to customer’s requirement.
