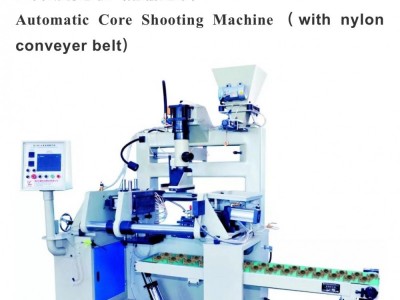

Automatic core shooting machine (with conveyor belt)
| Brand: | |
|---|---|
| : | |
| : | |
| : | |
| Quantity: | |
| Area: | 福建 |
| Expiry: |
Long-term
|
|---|
Contact Supplier
先生 WUYUANYI
企业单位
Basic Info.
Product Description
主要规格及技术参数
Main Specifications and Technical Parameters
No. | Items内容 | Parameters参数 |
1 | 砂芯最大重量Max.weight for core box | 6kg |
2 | 最大芯盒尺寸Max.size of core box (L*W*H) | 400*280*200mm |
3 | 加热板尺寸 Size of heating plate (L*W) | 350*200mm |
4 | 加热功率Heating power | 9.6kw |
5 | 射头下压行程 Ejector vertical stroke | ≤30mm |
6 | 开模行程Die opening stroke | ≤300mm |
7 | 抽芯行程 Core-pulling stroke | 150mm |
8 | 输送带尺寸Size of conveyor belt (L*W*H) | 2200*400*100mm |
9 | 机器总功率Machine power | 10kw |
10 | 输送带上升角Ascending angle of conveyor belt | 2-4˚ |
11 | 输送速度Conveying speed | 72mm/s |
12 | 机器净重 Net weight | 1350kg |
13 | 外形尺寸Boundary Dimensions (L*W*H) | 3500*1550*2200mm |
