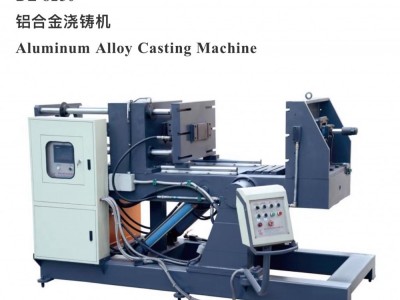

Aluminum alloy casting machine
| Brand: | |
|---|---|
| : | |
| : | |
| : | |
| Quantity: | |
| Area: | 福建 |
| Expiry: |
Long-term
|
|---|
Contact Supplier
先生 WUYUANYI
企业单位
Basic Info.
Product Description
主要规格及技术参数
Main Specifications and Technical Parameters
No. | 内容 Items | 参数 Parameters |
1 | 最小模具尺寸Max. mould size | 820*500 |
2 | 开合模行程Mould opening & closing stroke | ≤450mm |
3 | 合模最小距离Min. distance of clamping mould | 480mm |
4 | 开模最大距离Max. distance of opening mould | 920mm |
5 | 上抽芯行程Core-pulling(top) stroke | ≤70mm |
6 | 后抽芯行程Core-pulling(bottom) stroke | ≤120mm |
7 | 下顶模行程Ejector mold(bottom) stroke | ≤70mm |
8 | 最大合模力Max. mould clamping force | 65KN |
9 | 最大开模力Max. mould opening force | 70KN |
10 | 工作台倾斜角度Inclination angle of worktable | 0-90° |
11 | 液压系统工作压力Hydraulic system working pressure | 5MPa |
12 | 顶料油缸出力Ejector oil cylinder force | 30KN |
13 | 液压站额定功率Rated power of hydraulic pressure station | 3.75KW |
14 | 外形尺寸 Boundary Dimensions (L*W*H) | 2900*1800*1650mm |
